External French drains are an essential part of managing water flow around your home or property. They help redirect surface and groundwater away from foundations, basements, and other vulnerable areas, preventing water damage and maintaining the structural integrity of your building. This page provides a detailed overview of external French drains, their components, installation, benefits, and maintenance.
What is an External French Drain?

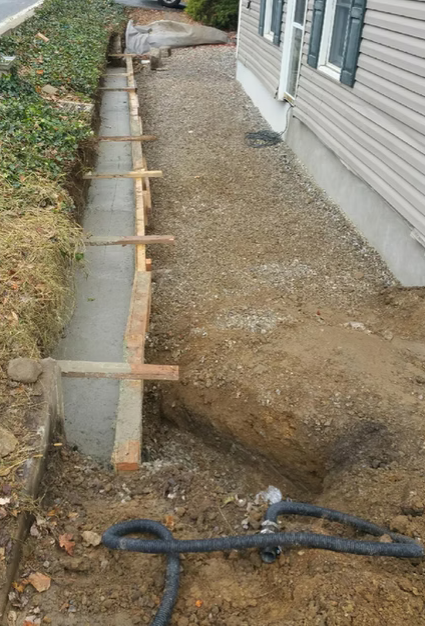

An external French drain is a trench filled with gravel or rock that contains a perforated pipe. It is designed to collect and redirect excess water away from your home or property to prevent flooding, soil erosion, and water damage. The drain works by utilizing gravity to guide water through the pipe and away from the area where water is pooling or accumulating.

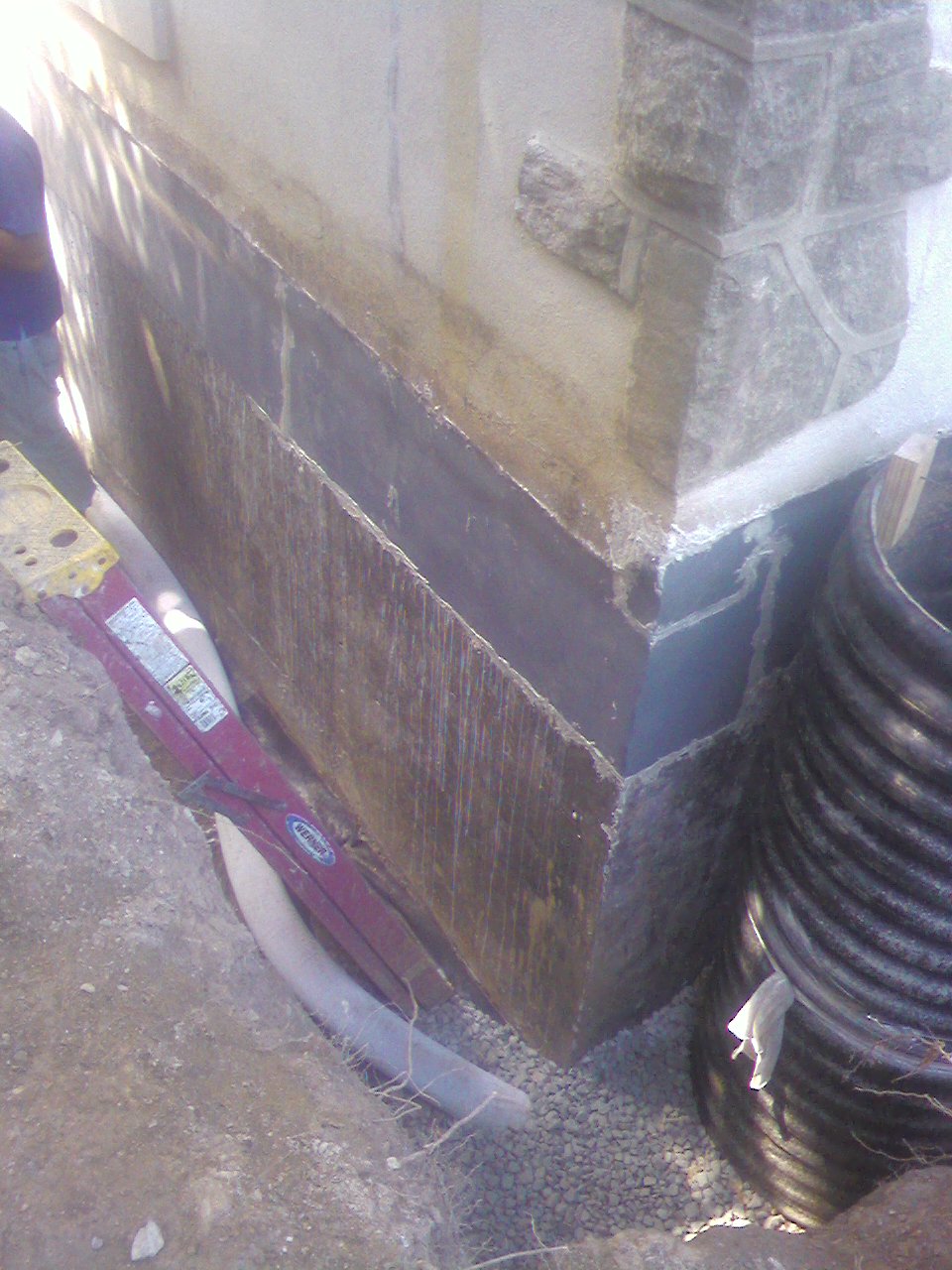

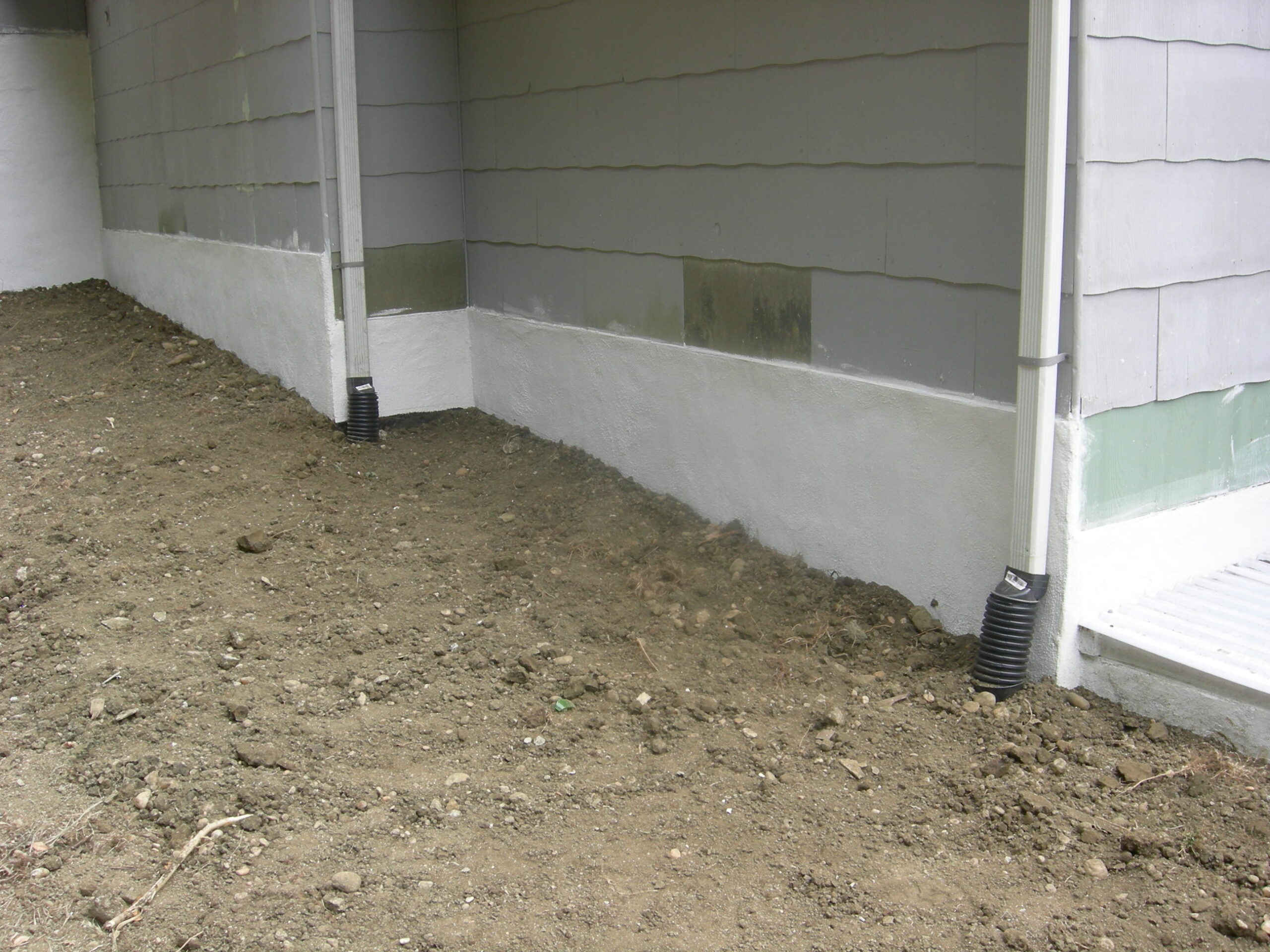

These drains are often installed along the perimeter of buildings, in yards, or around foundations to channel water away to a designated drainage area, such as a storm drain, dry well, or natural drainage path.
Key Components of an External French Drain

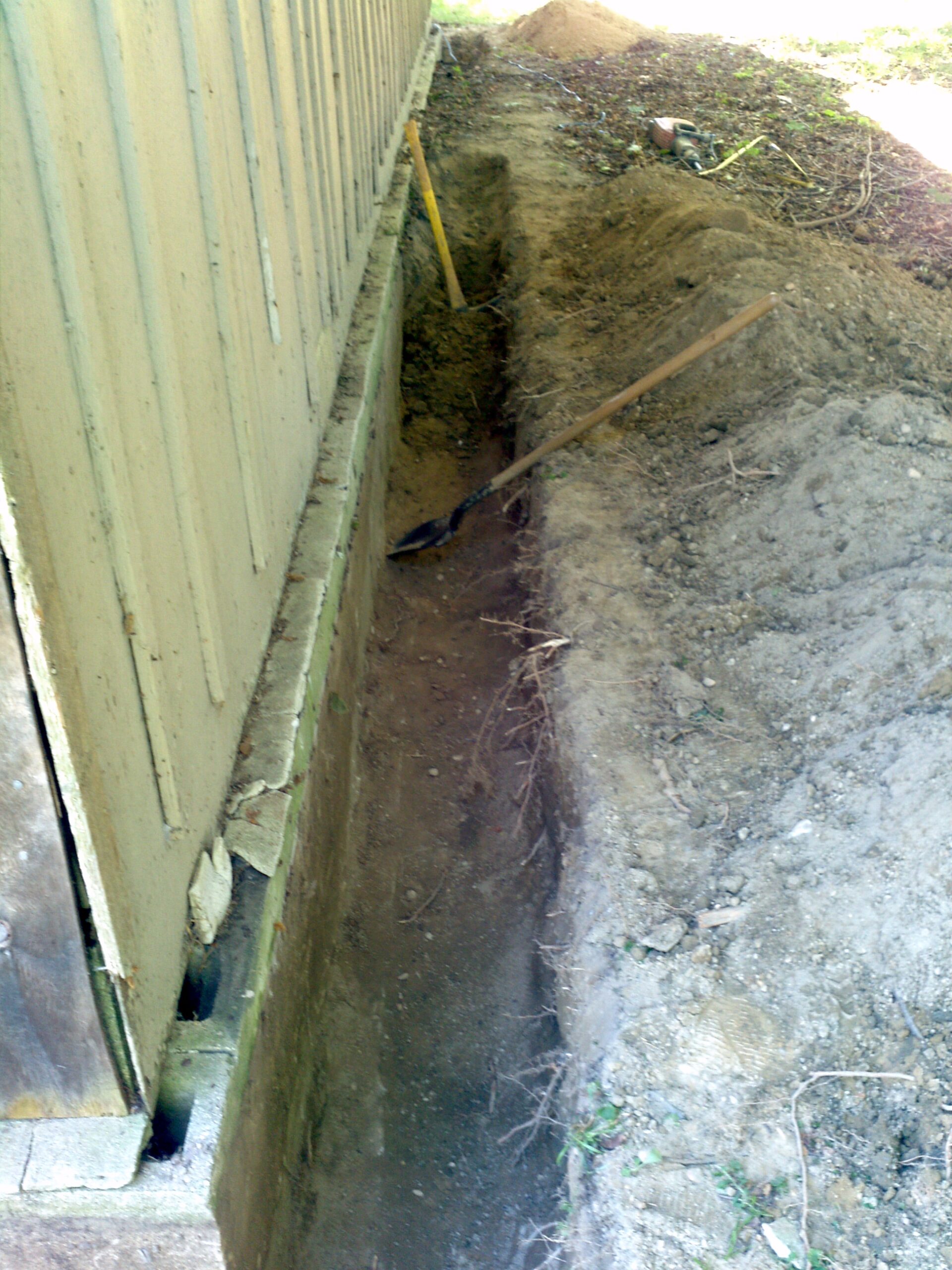

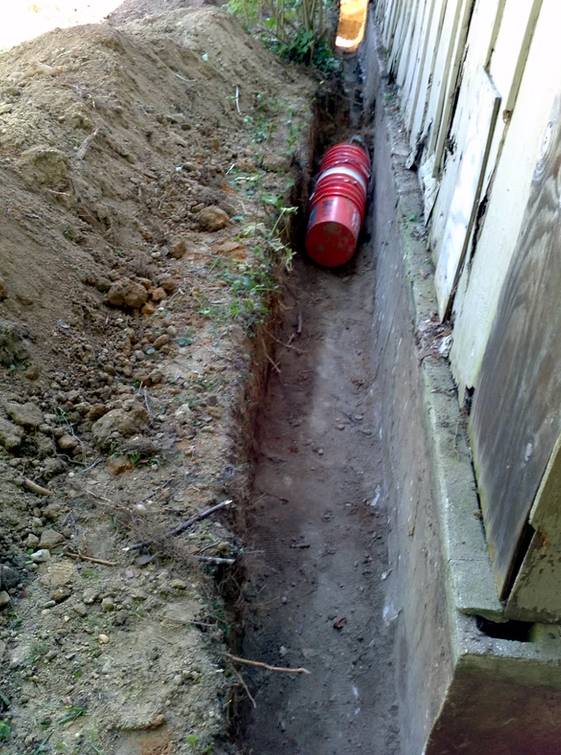

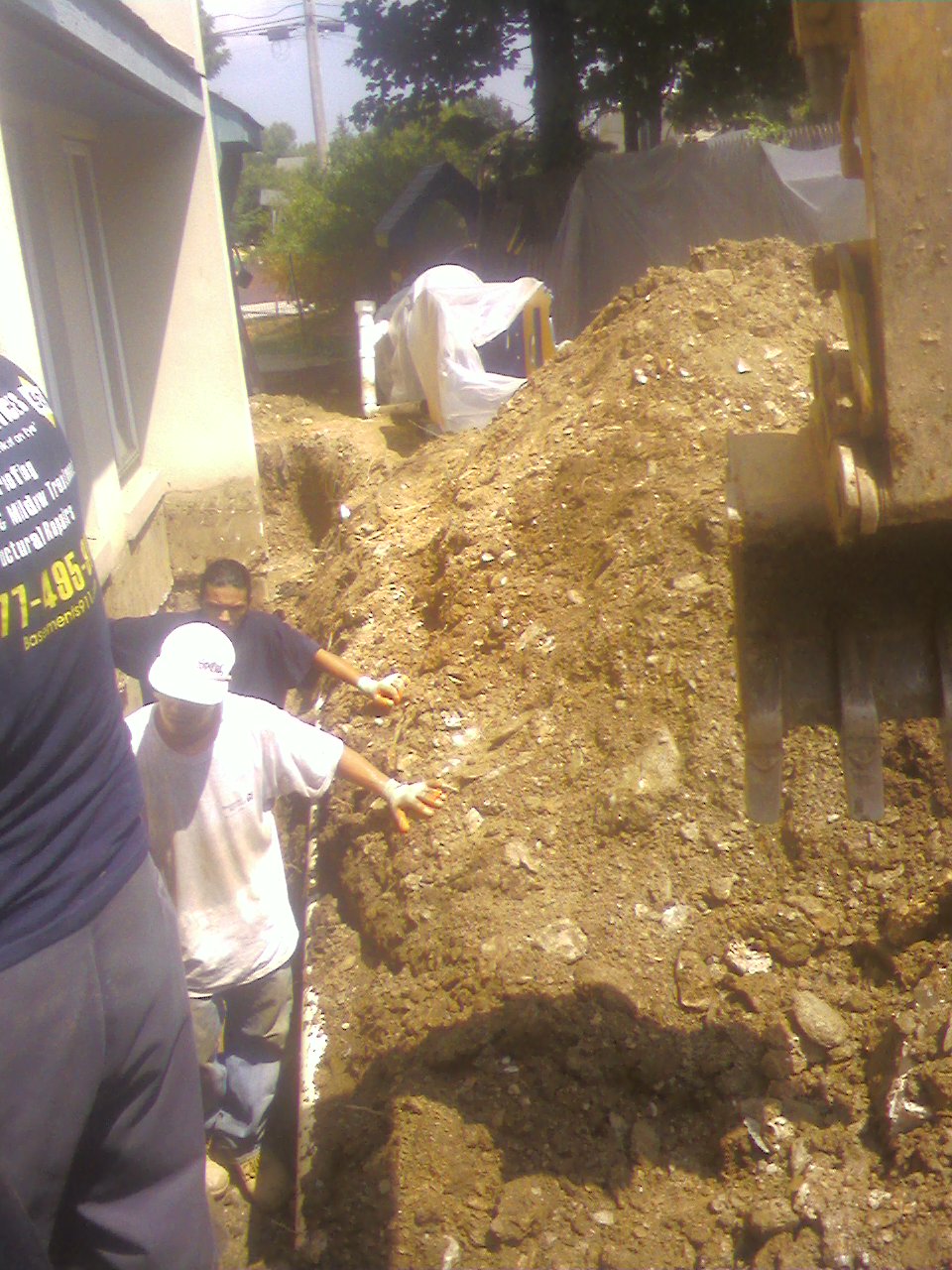

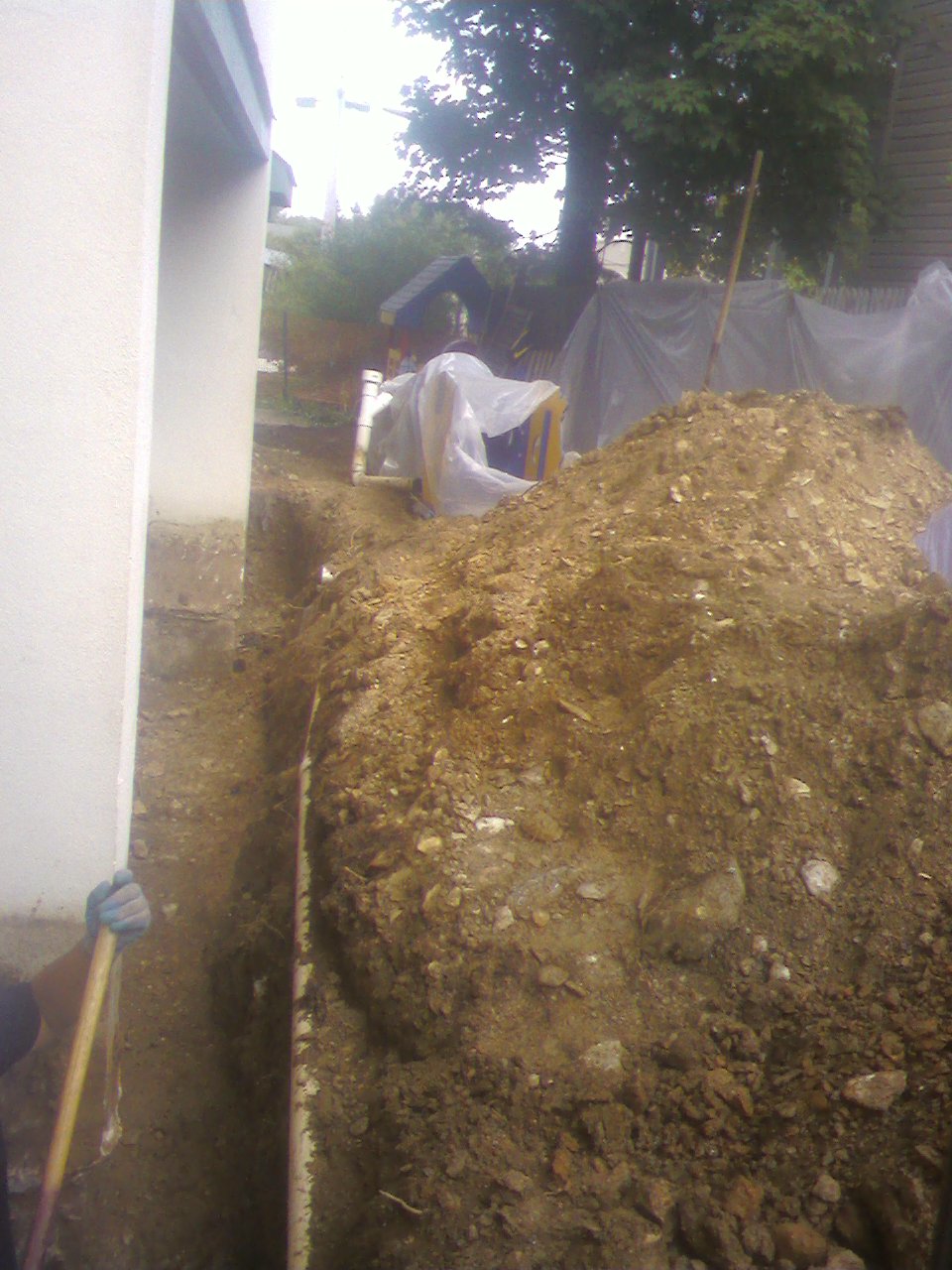

Trench: A long, narrow excavation, typically between 6 to 12 inches wide and 18 to 24 inches deep, where the drain system is installed.
Gravel or Rock: A layer of gravel or small rocks is placed at the bottom of the trench to promote water flow and filtration. The gravel helps ensure that the perforated pipe stays in place and allows water to flow freely.

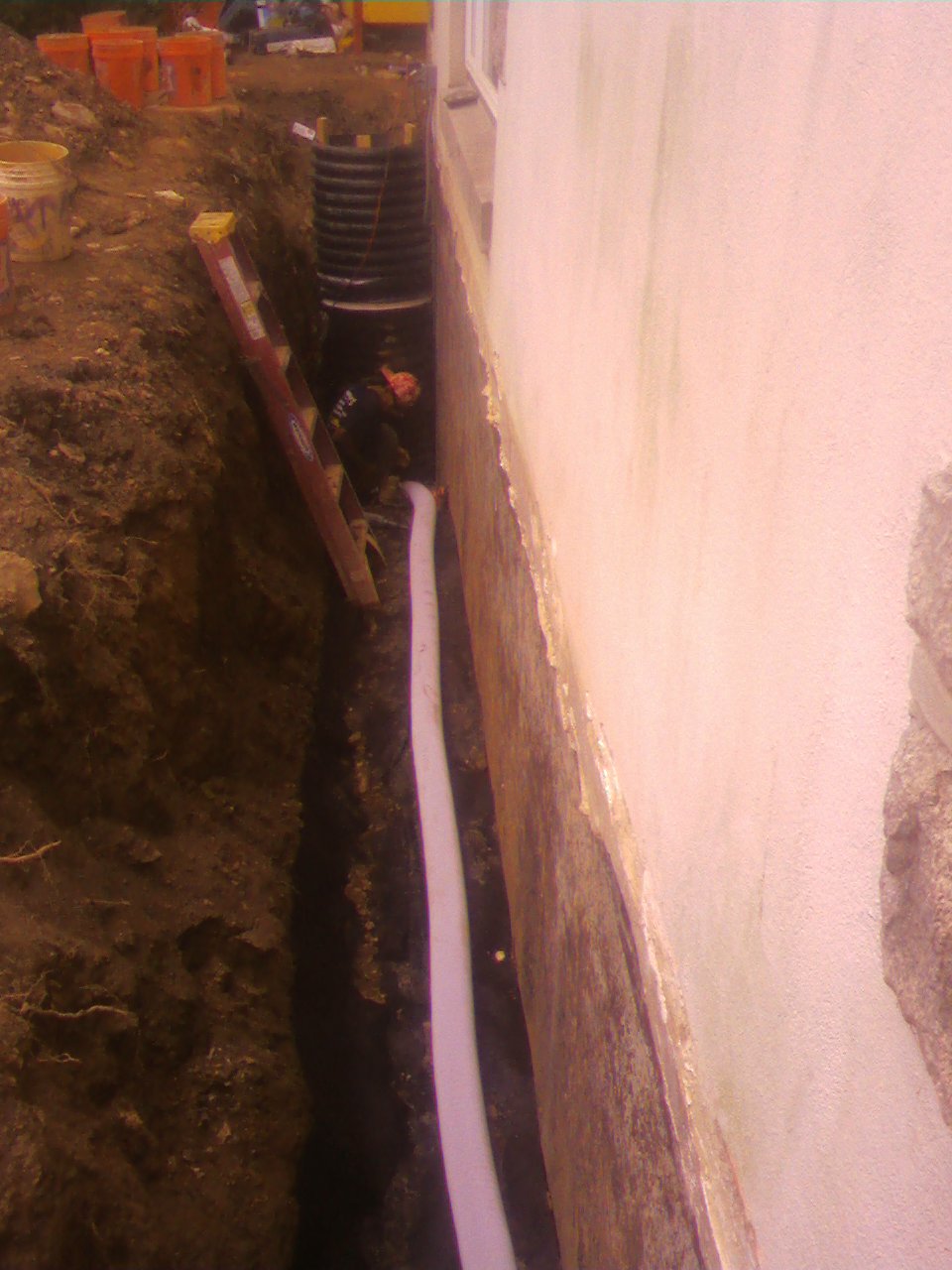

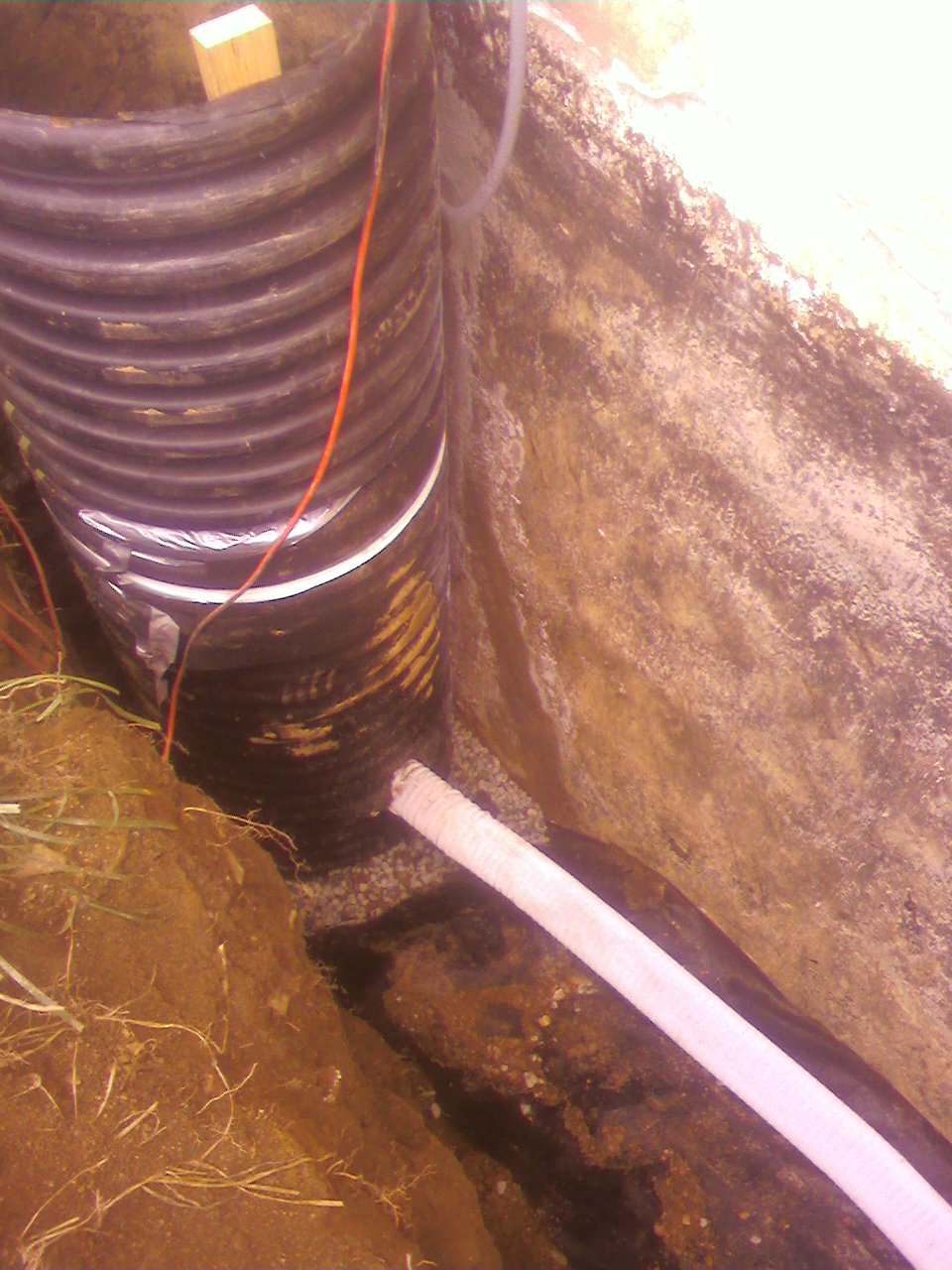

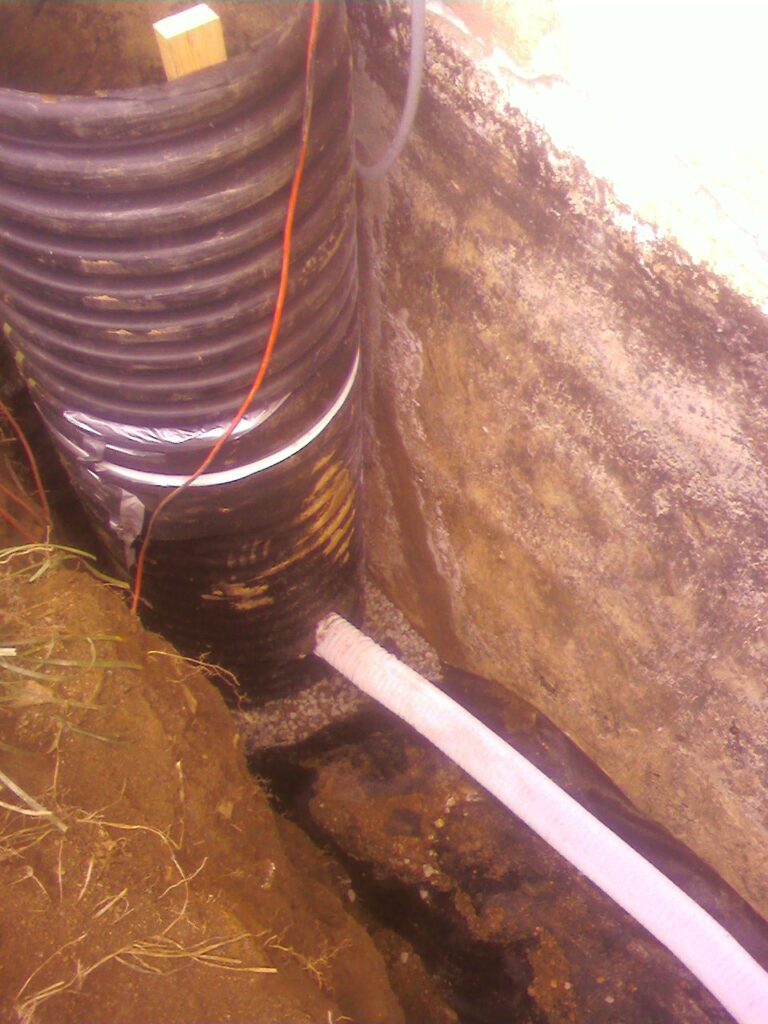

Perforated Pipe: The core of the French drain, typically made of PVC or flexible plastic. The perforations (holes) allow water to enter the pipe and be carried away. The pipe is placed in the gravel layer, with the perforations facing downward.
Geotextile Fabric: A non-woven fabric is often placed around the gravel to prevent soil and debris from clogging the pipe, while still allowing water to pass through.

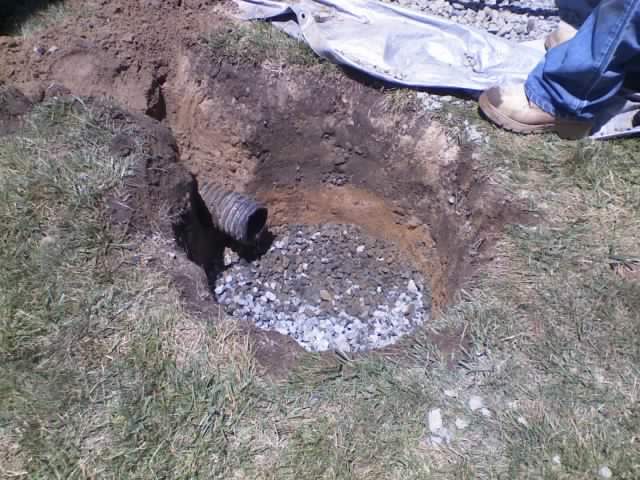

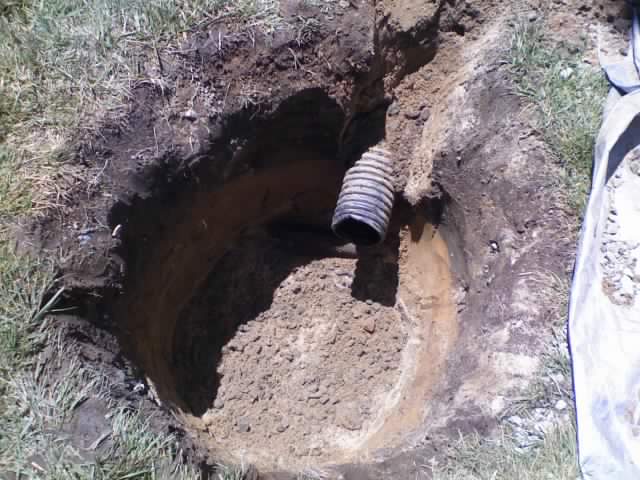

Outlet: The endpoint of the drain where water is redirected to a safe location, such as a storm drain or dry well.
Benefits of Installing an External French Drain
The primary function of an external French drain is to divert excess water away from foundations, basements, and other vulnerable areas. This helps prevent moisture buildup, mold growth, and structural damage.
French drains can help alleviate standing water in yards, driveways, or other low-lying areas. By channeling water away, they reduce the risk of flooding during heavy rainfall.
They enhance the overall drainage system of your property, reducing the likelihood of water pooling in unwanted places.
By managing water flow, French drains help protect your garden, plants, and landscaping from erosion and waterlogging.
Compared to other water management methods, external French drains are relatively inexpensive to install and maintain, offering long-term benefits at a reasonable cost.
